Tapping Hardox 500 Tuf: Real-World Test Results
Tapping Hardox 500 Tuf is a challenge due to its extreme hardness and wear resistance. To evaluate performance in a real-world application, a tap test was conducted with JW Bell using the GH-60 Hydraulic Tapping Arm.
The Application

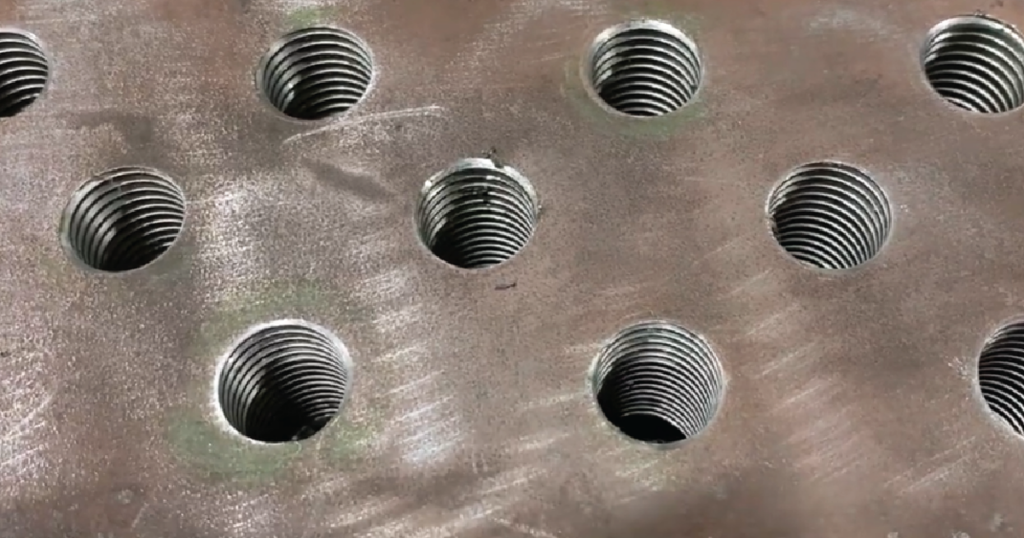

The test included tapping 17 holes in 1” thick Hardox 500 Tuf, each at 3/4”-10. All holes were cut on a burn table, introducing additional difficulty from heat-affected zones and variable edge conditions.
Tooling for Hardened Steel
The tap used for this application was the OSG EXOTAP VCX (V-XPM-HT), designed specifically for high-hardness materials.
Key features include:
- XPM Material – Provides extreme hardness, ideal for hardened steels like Hardox 500 Tuf
- Straight Flute Design – Effective for both through and blind holes in short-chipping materials
- V-Coating – Improves lubricity and wear resistance for longer tool life
Performance Results
The GH-60 Hydraulic Tapping Arm successfully completed all 17 holes, delivering consistent performance throughout the test. The combination of hydraulic torque and high-performance tooling enabled reliable thread production, even with a demanding material like Hardox 500 Tuf.
Why Tapping Hardox 500 Tuf Requires the Right Setup
When tapping hardened steel, success depends on more than just power. Proper tool selection, consistent torque, and controlled operation are critical to achieving clean, accurate threads while maximizing tool life.
